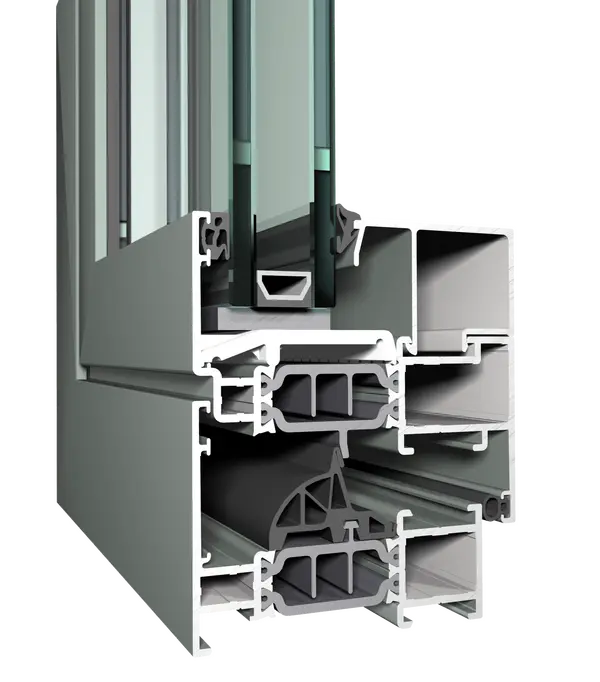

ConceptSystem 77
Smoke proof
ConceptSystem 77 is a trusted aluminium window solution that has been fully optimised to match all your project needs. This variant is compatible with a building’s SHEV system to extract smoke and heat quickly.
Additional safety features enable safe evacuation
Well-balanced price-performance-features mix
Reliable windows that last a lifetime
Technical details
Thermal Insulation
High
Uf = 1.8 W/m²K
Uw = 1.3 W/m²K
Air-Water-Wind
High
4 / E900 / C5
Acoustics
System Dimensions
Min. Frame-Vent Width 110 mm
Depth Frame 68 mm
System limitation
Max. Height Vent – 2400 mm
Product options
Personalise ConceptSystem 77 Smoke proof with the following options
Concealed Drainage
No more plastic cover caps, enjoy those clean lines
Concealed Hinges
The details are the design, concealed hinges are the finishing touch
Motorised
Comfortable to use, even remotely
The available options depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
