Comfort motorisation
HiFinity
Concealed slide motor
HiFinity is a premium system, only produced by certified fabricators. The
concealed slide motor allows you to open vents with the push of a button, or by connecting the motor to your home automation system.
This high performance motor guarantees optimum convenience. It is a safe and reliable solution that provides
an infinite view in excellent comfort. Despite its minimal visual sidelines, HiFinity’s durable strength allows you
to carry the weight of large sliding glass panes up to 750 kg, and fixed glass panes up to 1200 kg
HiFinity motorised can only be produced by certified fabricators
Features
- Fully concealed motor, no need for architects to worry about building construction adaptations or maximal ceiling height usage
- On-site auto-calibration for all lengths
- Minimum vent length 1300 mm and minimum 650 mm horizontal movement
- On-site automatic safety-calibration for installation sensitivity check
- Up to 8 slide motors in +80 synchronised solutions for opening design freedom
- Project support and tested up to 1200 kg / 20.000 cycles
- Adaptive speed profile for maximum safety
- HiFinity can be upgraded to motorisation with easy integration and no on-site milling, this by pre-installing some of the motorisation components.
- Easy wiring thanks to slide hub and cabinet hub
- Diagnostics on site via LED indicators of cabinet hub
MOTOR VARIANTS
80 kg - 425 kg slide systems
426 kg - 750 kg slide systems
50 W slide motor 062.7352.--
70 W slide motor 062.7353.-
HiFinity
Electric lock (062.8262.--)
HiFinity with an electric lock creates a secure and care-free environment where you do not have to worry about uninvited guests.
The sliding door features a robust bolt, operated locally by a button or via your Smart Home or Building Management System. It can also be unlocked from outside with one of our integrated Access Control solutions. Additionally, the integrated alarm feedback helps ensure full peace of mind.
Drop bolt lock features:
- Alarm feedback directly from lock (in position and locked)
- Concealed installation, better tolerances
- Can be upgraded to motorised sliding: pre-motorisation as an option upfront in the workshop
Benefits:
- Optimal comfort and security (RC2)
- Ease of installation due to cables with coloured connectors
- LED feedback on push button on status
- Alarm feedback contact
- Option for ventilation position: ventilation extention for connection rod (art. 062.9550.-
MasterPatio
Concealed lift & slide motor
MasterPatio is perfectly aligned with our MasterLine windows and doors to inspire beautiful and completely customisable façade solutions. The timeless and durable design always matches your taste and personality, as the ultimate expression of masterful living comfort.
Crafted by Masters, MasterPatio takes your home to the next level with its varied architectural possibilities. Thanks to its sustainable materials and superior thermal performance, which reaches Passive House insulation standards, this floor-to-ceiling solution is both beautiful and futureproof.
Certification is required to fabricate the motorised MasterPatio.
Features
- Fully concealed motor, no need for architects to worry about building construction adaptations or maximal ceiling height usage
- On-site auto-calibration for all lengths
- On-site automatic safety-calibration for installation sensitivity check
- Monorail motorisation only
- Single motor setup only: Element Controller is not required
- Minimum vent width of 1150 mm and minimum 650 mm horizontal movement
- Minimum vent height of 1645 mm and maximum 400 kg for lift motor
- Opening types Monorail Outside Glazing (OG): XQ, XQX, QXQ, QXXQ, XQVQ In & Out, XQVQX In & Out
- Opening types Monorail Inside Glazing (IG): XQ, XQX, QXXQ, XQVQ In & Out, XQVQX In & Out
- Minimal length sliding vent >1150 mm with +120 mm for fixed vent flush opening
- Spring loaded cable transfer to moving vent
- RC2 burglarproof conformity
- New easy and improved wiring thanks to slide hub and cabinet hub
- Diagnostics on site via LED indicators of cabinet hub
MOTOR VARIANTS
400 kg slide motor for Lift & Slide systems
400 kg lift motors
062.7300.-- slide motor 50 W
MasterPatio-LS
062.7306.-- Lift motor (h= 2600 mm)
062.7307.-- Lift motor (h= 2800 mm)
MasterPatio
Concealed slide moto
Features
- Fully concealed motor in a dedicated top profile, no need for architects to worry about building construction adaptations or maximal ceiling height usage
- On-site auto-calibration for all lengths
- On-site automatic safety-calibration for installation sensitivity check
- Minimum vent length 1450 mm and minimum 900 mm horizontal movement
- Up to 8 slide motors in +80 synchronised solutions for opening design freedom
- Project support and tested up to 600 kg / 20.000 cycles
- MasterPatio can be upgraded to motorisation with easy integration and no on-site milling, this by pre-installing some of the motorisation components.
- Easy wiring thanks to slide hub and cabinet hub
- Diagnostics on site via LED indicators of cabinet hub
- Easy connection to the building management system over KNX via the element controller
MOTOR VARIANTS
100 kg - 400 kg slide systems
400 kg - 600 kg slide systems
50 W slide motor 062.7352.--
70 W slide motor 062.7353.--

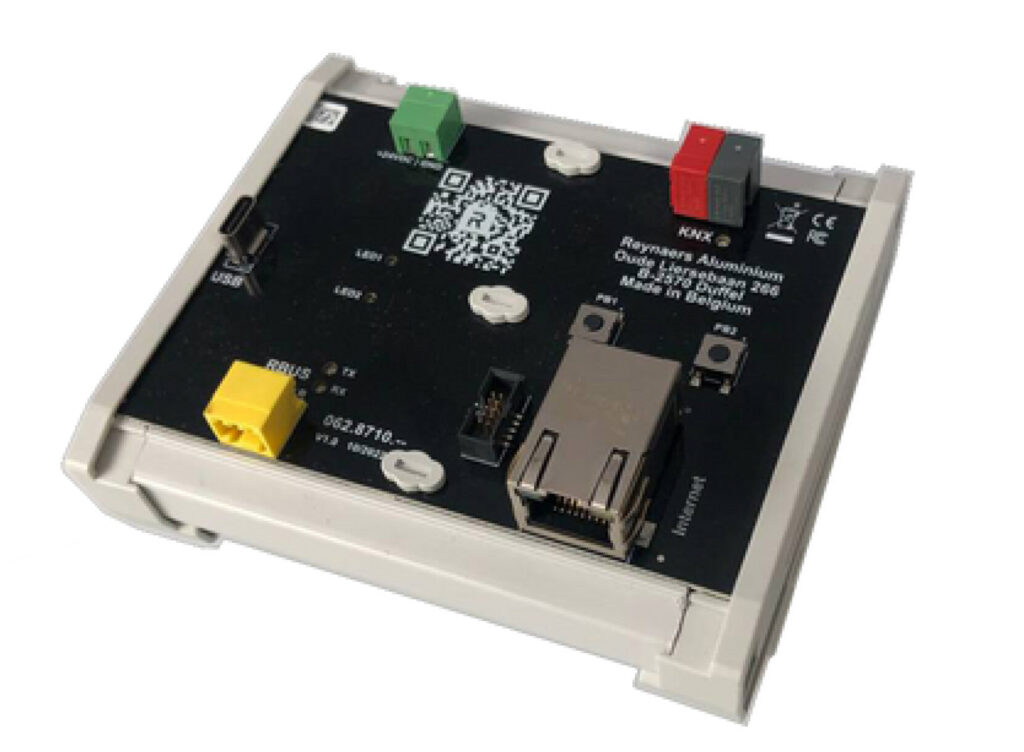

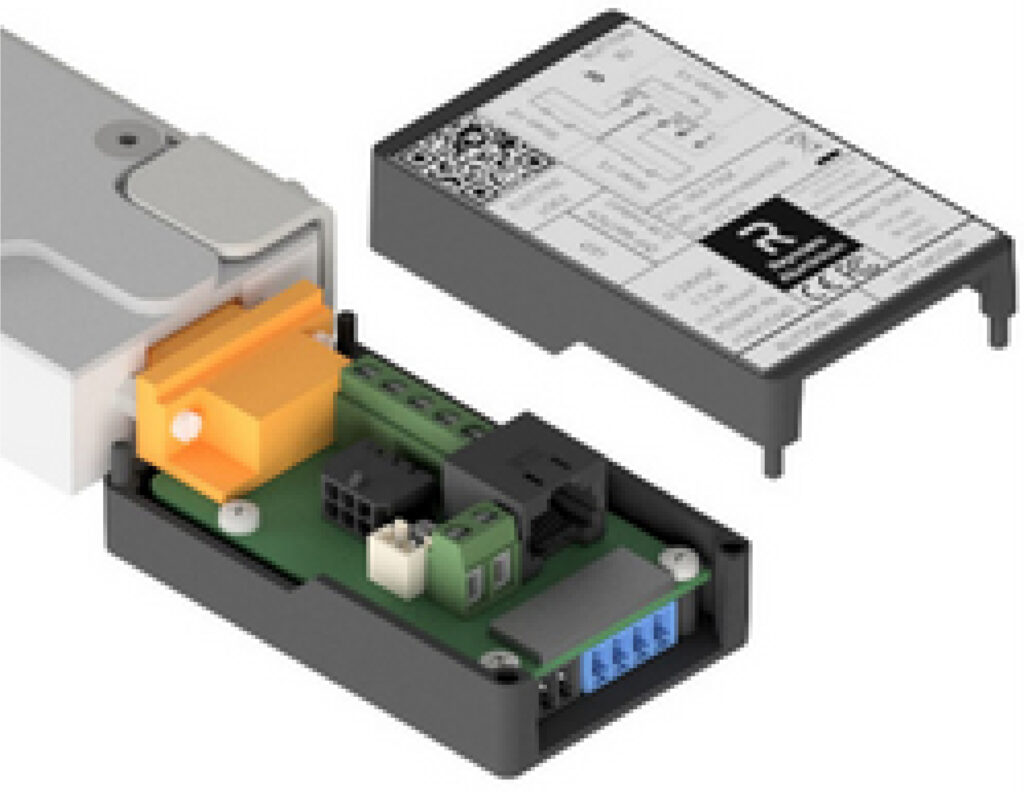

Element controller
Synchronisation
The Element Controller offers easy and fast installation to all supported opening
types. Residents enjoy safe and easy control thanks to synchronising motors of
single elements and integration options for Building Management Systems or
Smart Home Solutions.
Features
- One device for all setups
- Synchronisation of up to 8 slide motors in a single element
- RBus: highly reliable and robust proprietary motor communication protocol based on RS485; longer cables, low signal interruption and multiple motors in daisy chain
Element Controller is mandatory for synchronisation in the following situations:
- Single control for one or multiple vents
- Collision prevention between heavy moving vents by position-based, closed-loop movement control
- High safety performance by motor current and position-based SAFETY control per motor
- Easy setup and maintenance by installer via manual PC-less setup
- Advanced configuration options
- Over-the-air updates
- Built-in KNX
- Easy diagnotistics on site, possibility to recalibrate by the push of a button
Technical characteristics motors
CHARACTERISTICS
Minimal length sliding window
>1300 mm for HiFinity
>1150 mm with +120 mm for fixed vent flush opening for MasterPatio(-LS)
>1450 mm and minimum 900 mm horizontal movement for MasterPatio Slider
Vent weight
Starting from 80 kg
Voltage
24 V DC +/- 10%
Current slide motor
2 A nominal, 2.5 A peak - 50 W motor
2.5 A nominal, 3.5 A peak - 70 W motor
Current lift motor
1 A nominal, 2 A peak
Current drop bolt lock
1 A nominal, 1.3 A peak
Power supply requirements
Regulated switching power supply with overheat, short circuit safety
Travelling speed sliding
+- 7 cm per second
Safety
PSPE, contact-based pressure sensitivity based on current monitoring
Enclosure class
IP20, when built in according to the catalogue guidelines
Lock
Drop bolt system, fail-secure
Slide motor power rating
50 W or 70 W
Additional accessories for plug & play solution: e-cabinets and pre-made cables

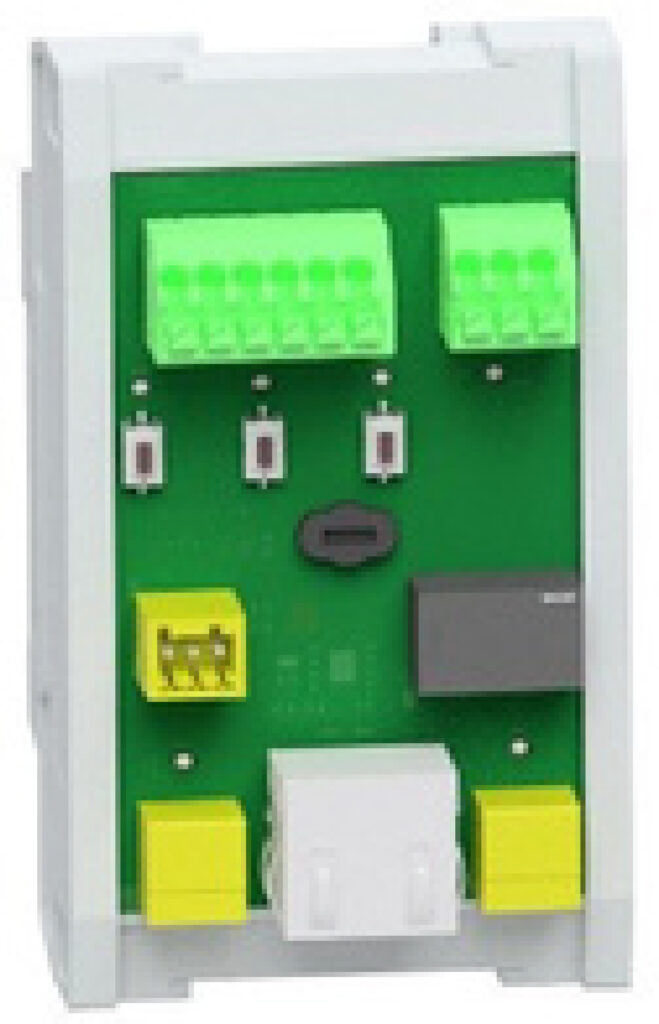

E-CABINET
MOTORISED SLIDING 062.7348
MOTORISED SLIDING 062.7349.--
Use cases
Manual with electric lock (max 4) Motorised (max 2 motors)
Motorised (max 4 motors)
+24 V DC & 5 A
+24 V DC & 10 A
Technical details
Battery back-up
Battery back-up
On-site diagnostics via cabinet hub & element controller
On-site diagnostics via cabinet hub & element controller
PRE-MADE CABLES
Power supply cable 062.8217 (10m)
Push button cable 062.8219 (10m)
Motorised (max 4 motors)
Motor cable 062.8583 (3m) 062.8584 (10m
Push button cable with connector 062.8222 (10m)
Motor power cable 062.7317 (10m)
Electric lock cable 062.7360 (0.5m) 062.7361 (5m)
Push button cable with connector and LED 062.8547 (10m)
Motor signal cable (FTP cat6) 062.7316 (10m)
