ConceptSystem 77
Hidden Vents

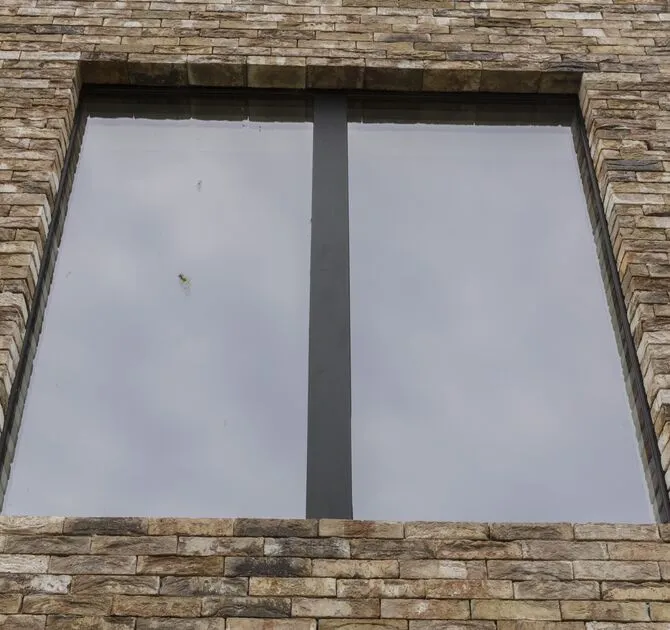

ConceptSystem 77 is a trusted aluminium window solution that has been fully optimised to match all your project needs. Hidden Vent is an opening element that looks like a fixed element from the outside, creating a clean and uniform look.
Subtly hidden vent system creating continuous façades
Well-balanced price-performance-features mix
Reliable windows that last a lifetime
Technical details
Thermal Insulation
High
Uf = 2.1 W/m²K
Uw = 1.4 W/m²K
Air-Water-Wind
High
4 / E750 / C4
Acoustics
High
Rw(C;Ctr) = 46(-1;-4) dB
System Dimensions
Min. Frame-Vent Width 76 mm
Depth Frame 68 mm
System limitation
Max. Height Vent – 2400 mm
Max. Weight Vent – 120 kg
Product options
Personalise MasterLine 10 with the following options
Balustrade
Safety can equal beauty
Concealed Drainage
No more plastic cover caps, enjoy those clean lines
Concealed Hinges
The details are the design, concealed hinges are the finishing touch
Flyscreen
Enjoy cool summer evenings, without losing sleep
Glass Corner
Glass to glass connection without profiles obstructing the view
Motorised
Comfortable to use, even remotely
The available options depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
