ConceptPatio 130
Aesthetic functionality
With ConceptPatio 130, you choose a versatile (lift &) slide system that can handle all your standard building needs. Its quality-for-money design and reliable performance makes it the perfect solution for renovation projects.
Entry-level sliding solution for all your standard projects
Quality for money guaranteed in renovation projects
All-round and complete range of design options
Endless possibilities
Click on the buttons below to explore all variants.
Type
lift & Slide
This system variant lifts up from the floor it rests on to slide open effortlessly.
Insulation
High Insulation+
‘The High Insulation variant offers the best thermal performance in this series.
Safety
Burglarproof
The system’s burglarproof variant makes buildings safe and secure against possible intruders.
Product options
Personalise ConceptPatio 130 with the following options
Balustrade
Safety can equal beauty
Concealed Drainage
No more plastic cover caps, enjoy those clean lines
Glass Corner
Glass to glass connection without profiles obstructing the view
Slim Chicane
Increasing the transparency of the window where it is most visible.
Softclose
Combines safety and comfort
The available options depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.

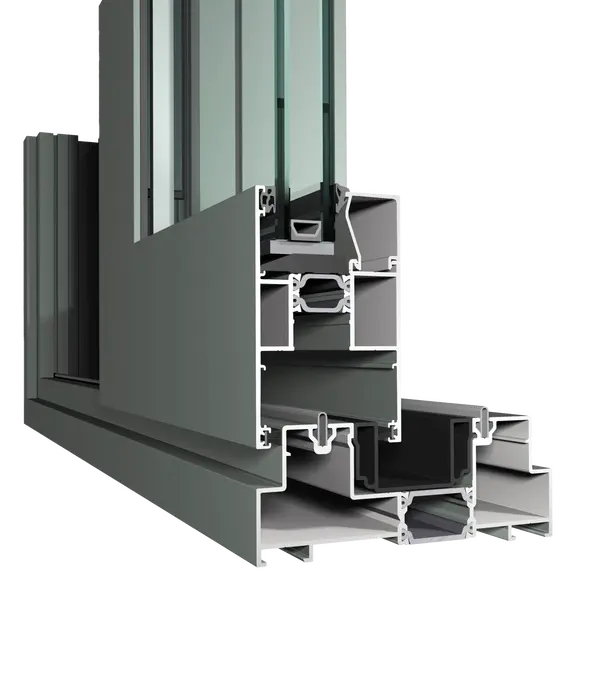

Technical details
Thermal Insulation
Uw = 1.4 W/m²K
Air-Water-Wind
High
4 / E750 / B5
Acoustics
High
Rw(C;Ctr) = 39(-1;-3) dB
Height Vent
Max 2700 mm
Width Vent
Max 2700 mm
Max Weight
Vent = 300 kg
Fixed = 300 kg
Connected to comfort.
Smart Buildings
Increase your comfort with access control, motorisation and ventilation solutions. Our components are compatible with the market’s leading home automation apps and protocols.
Effortless access to your element’s digital product passport
DigiTrace
A unique element identifier provides you with a wealth of information in a matter of seconds, eliminating the need for any manual search. A quick scan allows immediate access to all system and technical details specific to your element as well as to documentation, certificates and contact details of your fabricator.
